AtomVision AI Edge Analytic Box - Summary
The AI Edge Analytic Box runs Video AI analytics on existing IP cameras. Inference uses the on-device NPU (RKNN). Cloud sync is optional.
Product Line
- Standard ($299): Black chassis, Rockchip RK3568 + ~1 TOPS NPU, up to 4 AI streams, dual Gigabit Ethernet, HDMI in/out, 12V DC. Pilots and small sites.
- Professional ($799): White chassis, Rockchip RK3588 + 6 TOPS NPU, up to 16 AI streams, dual Gigabit Ethernet, HDMI in and dual HDMI out, 12V DC. Malls, job sites, and traffic corridors.
- Enterprise (contact sales): On-premise deployment on customer-specified or customized hardware. Capacity is sized with the site. No catalog appliance.
Key Features
- Construction safety, people counting, traffic, facial recognition modules
- Local alert pipeline on the edge box
- ONVIF / RTSP camera ingest
- 3-year warranty on Standard and Professional appliances
Contact AtomVision sales for volume pricing and custom configurations.
AI Edge Analytic Box
Standard
Up to 4 AI streams · pilots, single-zone sites
- RK3568 · ~1 TOPS NPU
- eMMC + microSD
- Dual GbE · HDMI · 12V
Most popular
AI Edge Analytic Box
Professional
Up to 16 AI streams · malls, job sites
- RK3588 · 6 TOPS NPU
- eMMC, microSD, NVMe option
- Dual GbE · HDMI in/out
AI Edge Analytic Box
Enterprise
On-premise · hardware specified per site
On-premise deployment on customer-specified hardware. We do not publish a chassis for this tier.
- Custom hardware · local inference
- Scoped with the deployment
- No catalog appliance
Models & Technical Specifications
atomvision.app · Hardware · Compare models
3 models · side-by-side
Specification
Up to 4 AI streams
AI Edge Analytic Box Standard
$299
Pilots and small sites
Up to 16 AI streams
AI Edge Analytic Box Professional
$799
Malls, job sites, traffic corridors
Sized with your site
AI Edge Analytic Box Enterprise
Contact sales
On-premise, custom hardware
Processor
Rockchip RK3568, quad-core Cortex-A55 up to 2.0 GHz
Rockchip RK3588, octa-core (4× Cortex-A76 + 4× Cortex-A55)
—
NPU
~1 TOPS NPU (RKNN)
6 TOPS NPU (RKNN)
—
Memory
4 GB LPDDR4
8 GB LPDDR4X / LPDDR5
—
Local Storage
eMMC plus microSD (TF) expansion
eMMC plus microSD; NVMe option via PCIe
—
Network Interface
2× Gigabit Ethernet (RJ-45)
2× Gigabit Ethernet (RJ-45)
—
Video I/O
HDMI in, HDMI out
HDMI in, dual HDMI out; 4K/8K decode class
—
USB
USB 3.0 and USB 2.0
USB 3.0
—
Audio
3.5 mm
3.5 mm
—
Power Supply
12V DC
12V DC
—
Cooling / form
Fanless aluminum chassis, desktop or wall-mount
Fanless finned aluminum chassis
—
AI capacity
Up to 4 streams with lightweight detection models
Up to 16 streams; multi-model (safety, counting, LPR)
—
Deployment
—
—
On-premise AtomVision on customer-specified or customized hardware
Capacity
—
—
Sized with sales from camera count and which applications run together
Inference
—
—
Local Video AI on site; alerts do not wait on a cloud round-trip
Cloud
—
—
Optional cloud sync for multi-site dashboards and search
Applications
—
—
Construction safety, counting, traffic, and consent-first facial recognition
Highlights
- Rockchip RK3568 with on-device NPU

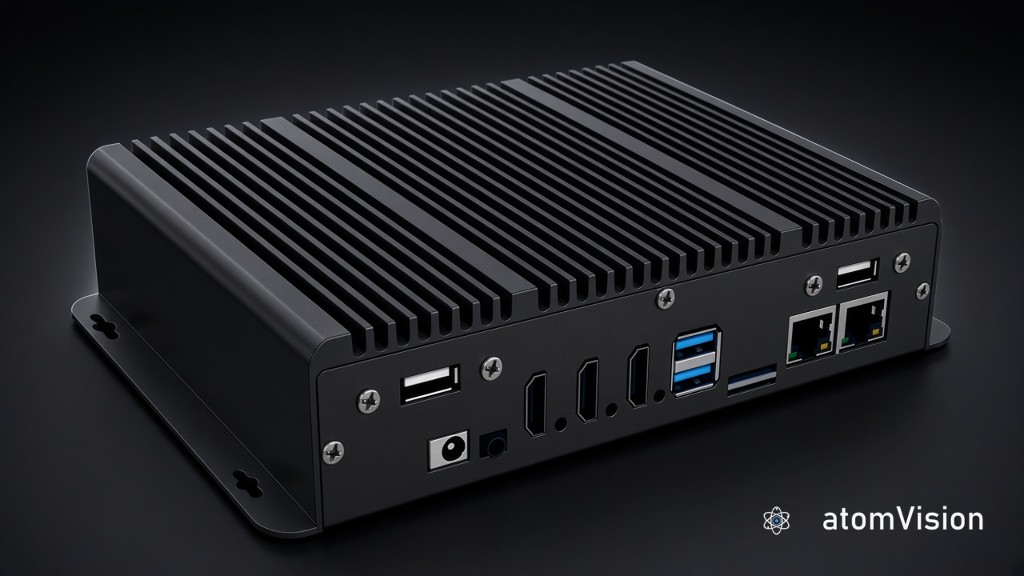

- Fanless black industrial chassis
- Desktop or wall-mount, 12V DC
- Rockchip RK3588 with 6 TOPS NPU
- Multi-model safety, counting, and LPR

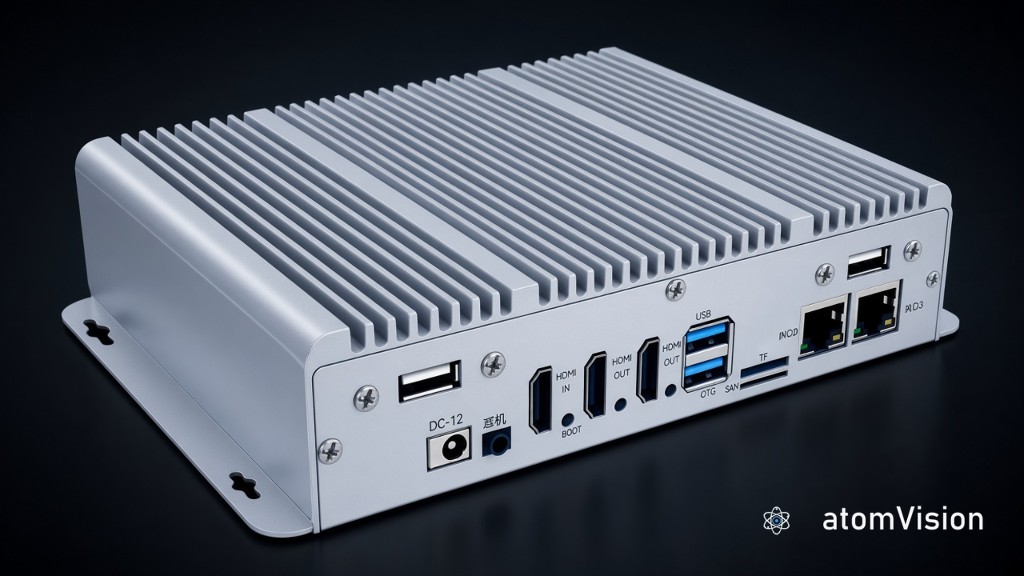

- Fanless white industrial chassis, 12V DC
- On-premise deployment, not a catalog appliance
- Hardware specified with camera count and applications
- Optional cloud sync for multi-site operations
atomvision.app · Hardware · AI Edge Analytic Box Professional
Up to 16 AI streams · $799
Malls, job sites, traffic corridors
- Rockchip RK3588 with 6 TOPS NPU
- Multi-model safety, counting, and LPR
- Fanless white industrial chassis, 12V DC
Technical specifications
ProcessorRockchip RK3588, octa-core (4× Cortex-A76 + 4× Cortex-A55)
NPU6 TOPS NPU (RKNN)
Memory8 GB LPDDR4X / LPDDR5
Local StorageeMMC plus microSD; NVMe option via PCIe
Network Interface2× Gigabit Ethernet (RJ-45)
Video I/OHDMI in, dual HDMI out; 4K/8K decode class
USBUSB 3.0
Audio3.5 mm
Power Supply12V DC
Cooling / formFanless finned aluminum chassis
AI capacityUp to 16 streams; multi-model (safety, counting, LPR)
Catalog boxes include
atomvision.app · Hardware · What's included
All models
Simple Discovery
Finds your cameras on the network automatically
Local event buffer
Keeps events on the appliance during temporary outages
On-device NPU
RKNN inference on the Standard and Professional boxes
3-Year Warranty
Standard protection on catalog appliances, with extended options
